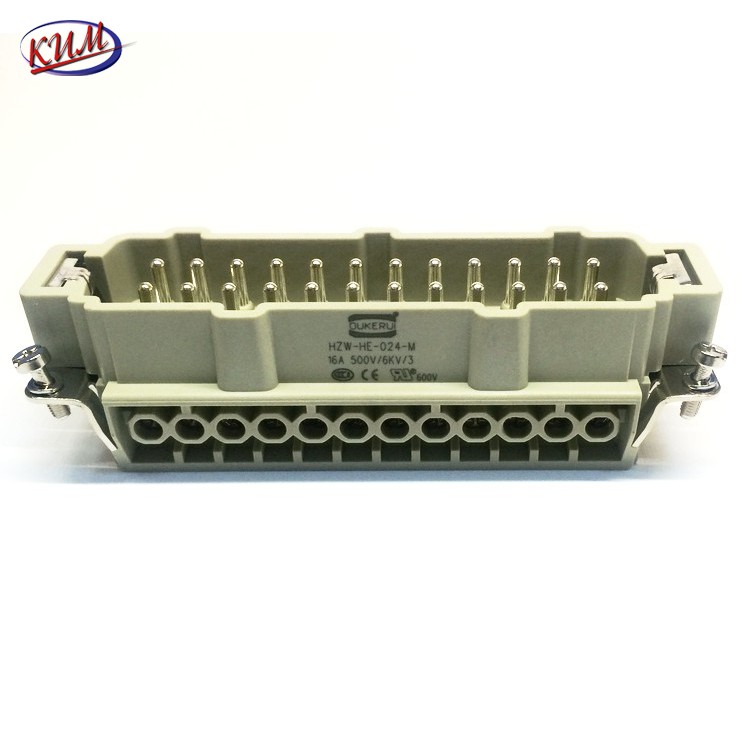

HE-024-M Контактная вилка 24PIN, 16A/500V, винтовое соединение
| HE-024-M | | Specifications | | Number of contacts | 24+PE | | Working current | 16A | | Working voltage | 500V | Pollution degree | 3 | Rated impulse voltage | 6KV | | Insulation resistance | ≥1010Ω | | Material | PolyCarbonate | | Flammability acc.to (UL94) | V0 | | Limiting temperatures | -40℃...+125℃ | | Mechanical working life (mating cycles) | ≥500 | | Working voltage acc.to UL/CSA | 600V | Contacts | | Material | Copper alloy | | Surface | silver plated | | Contact resistance | ≤1mΩ | | Terminal | Screw terminal | | Wire gauge | 1.0-2.5mm²(AWG18-14) | | Screw terminal tightening | 0.5Nm | | Stripping length | 7-9mm |
|
Цена: уточняйте у менеджера
|
